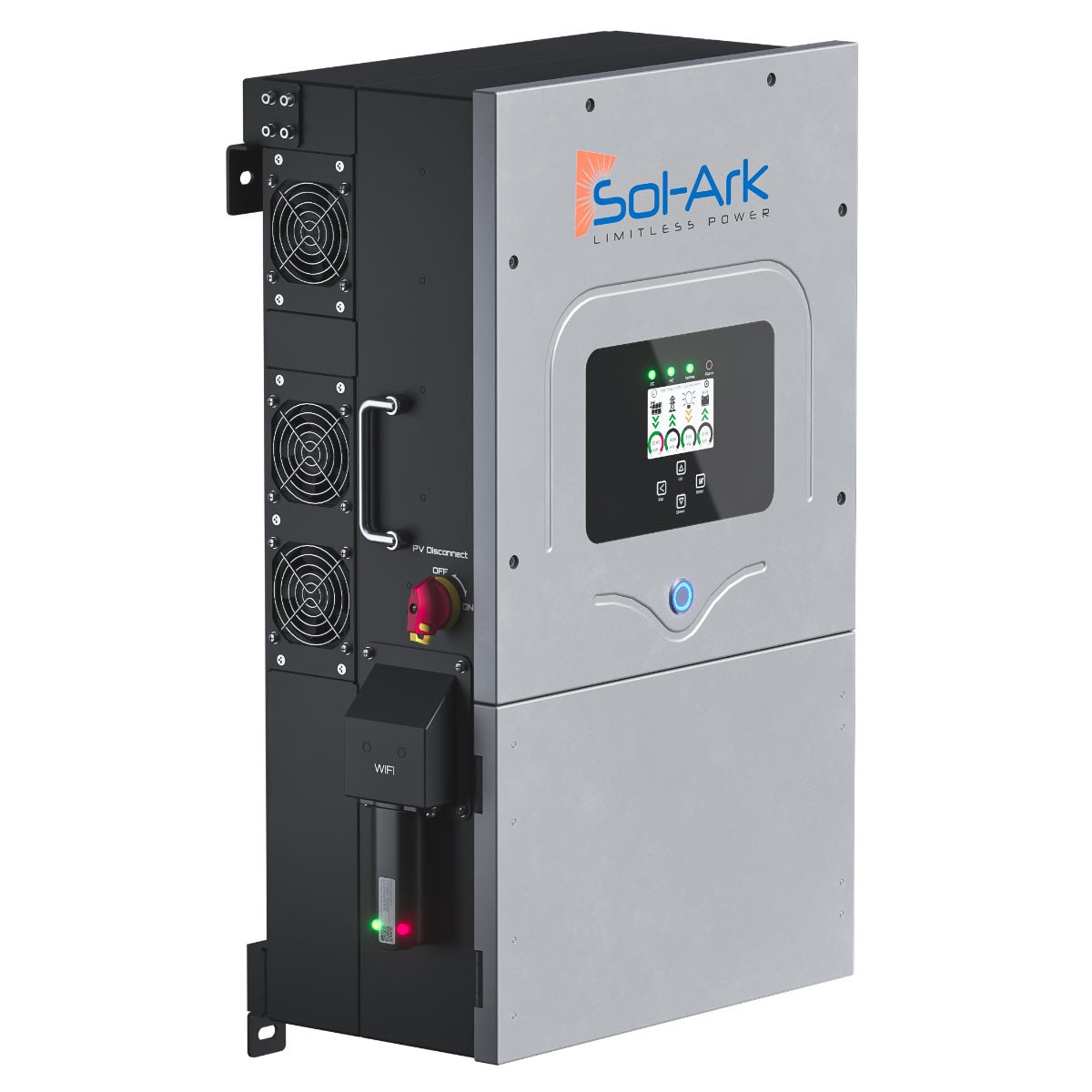

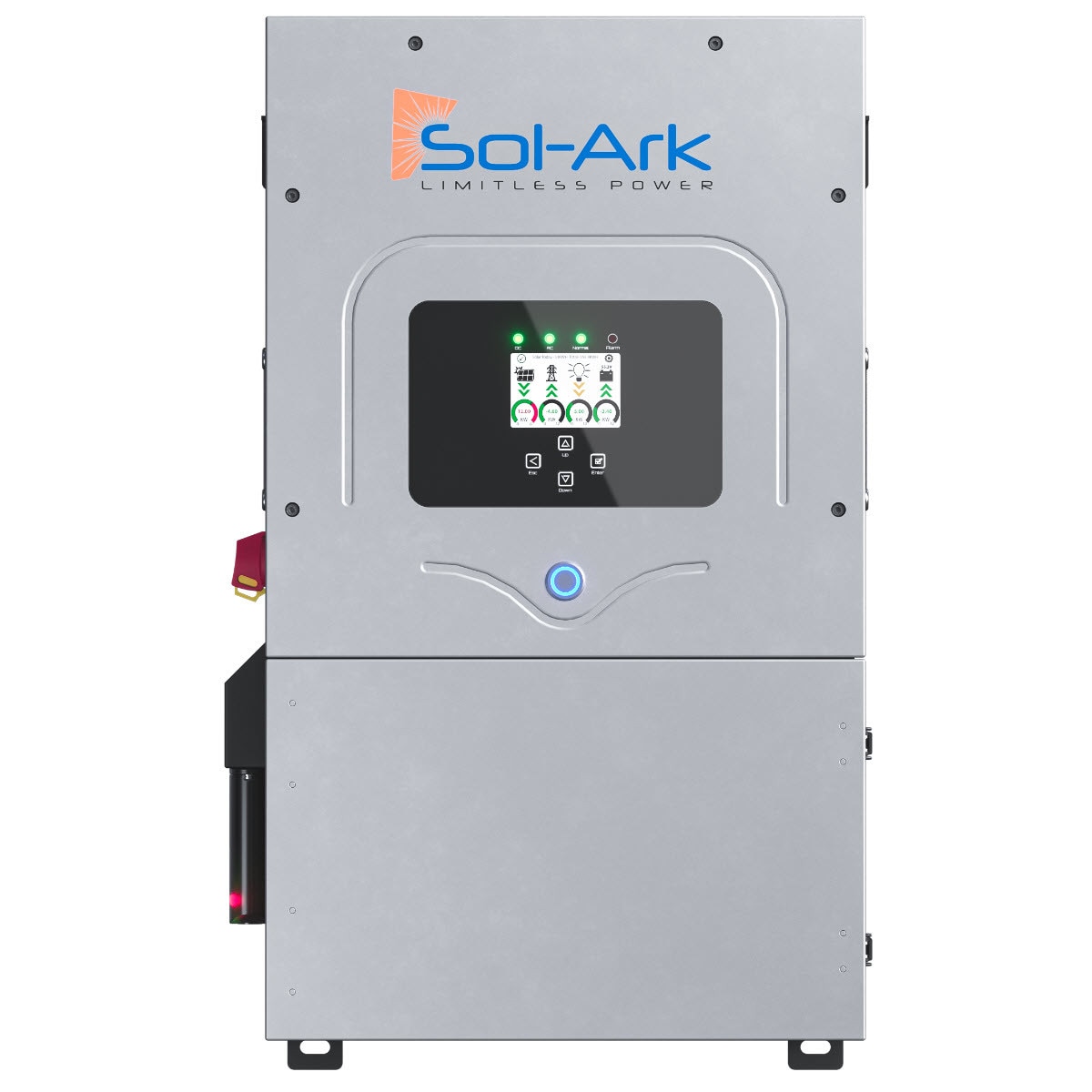

12K-2P Hybrid Inverter

Cost Effective Partial Home Backup

Built for energy resilience, the Essentials 12K Hybrid Inverter combines powerful backup performance with advanced energy management in a single platform. Delivering 9kW of backup power and 16kVA of surge capacity, it easily starts demanding loads such as small well pumps, compressors, and other motor-driven equipment.

Designed for maximum installation flexibility, the Essentials 12K supports both DC and AC-coupled solar, making it ideal for new installations and retrofit projects alike. A 63A grid passthrough allows for partial home backup, while the integrated Smart Load function and multifunction GEN port provide seamless support for generators, AC-coupled PV, and intelligent load management.

The result is a home energy solution that delivers exceptional performance, installation flexibility, and reliable energy independence—without requiring additional PCS components

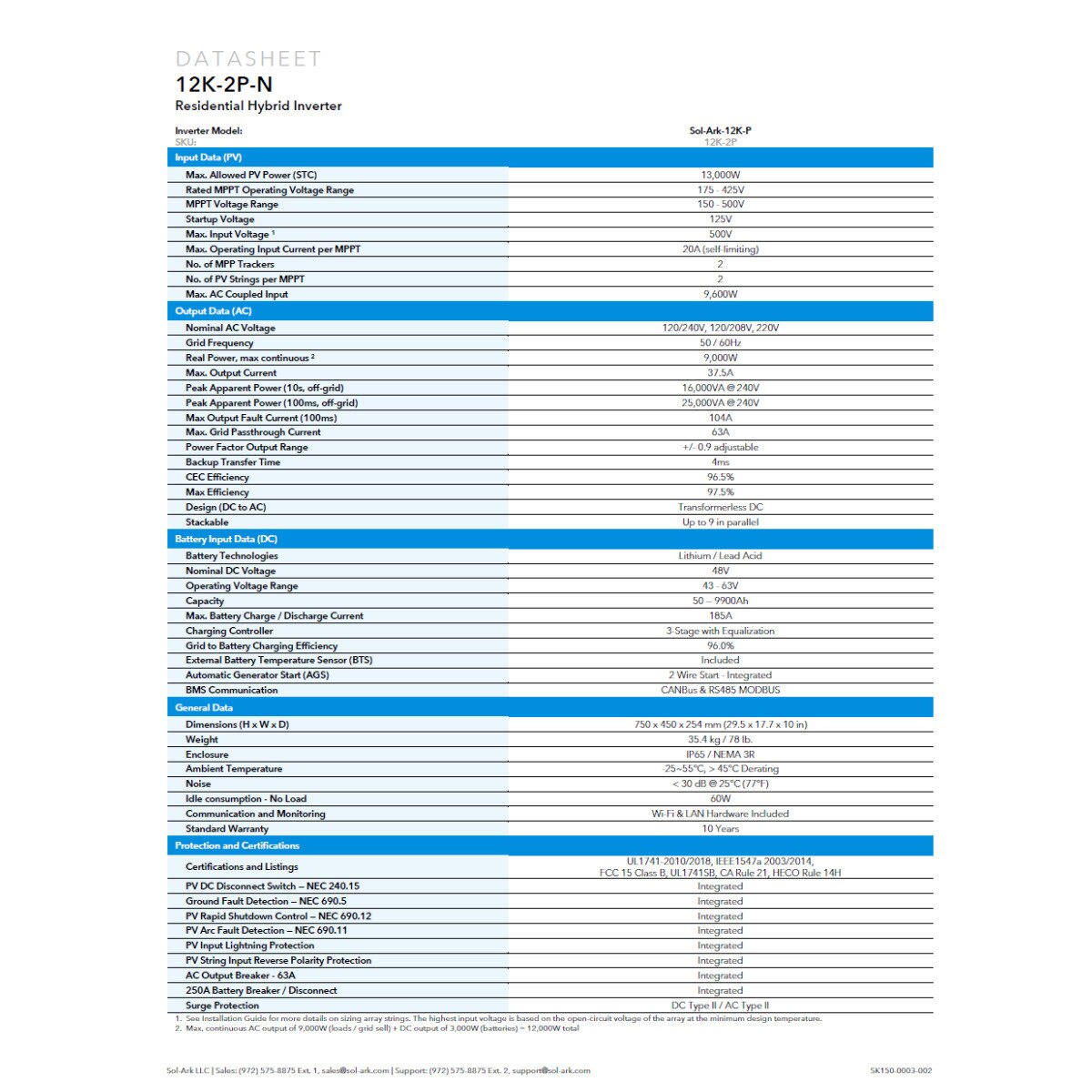

12K-2P-LV Hybrid Inverter:
AC Grid Input Output: 12kW, 120/240, 120,208, 220 Vac
AC Backup Output: 9kW, 120/240, 120,208, 220 Vac
Battery Input Output: 48Vdc, 185A
PV Input: 13 kWp, 500Vdc
Gen Port Input Output: 9.6kW, 240Vac
Grid Passthrough: 63A
