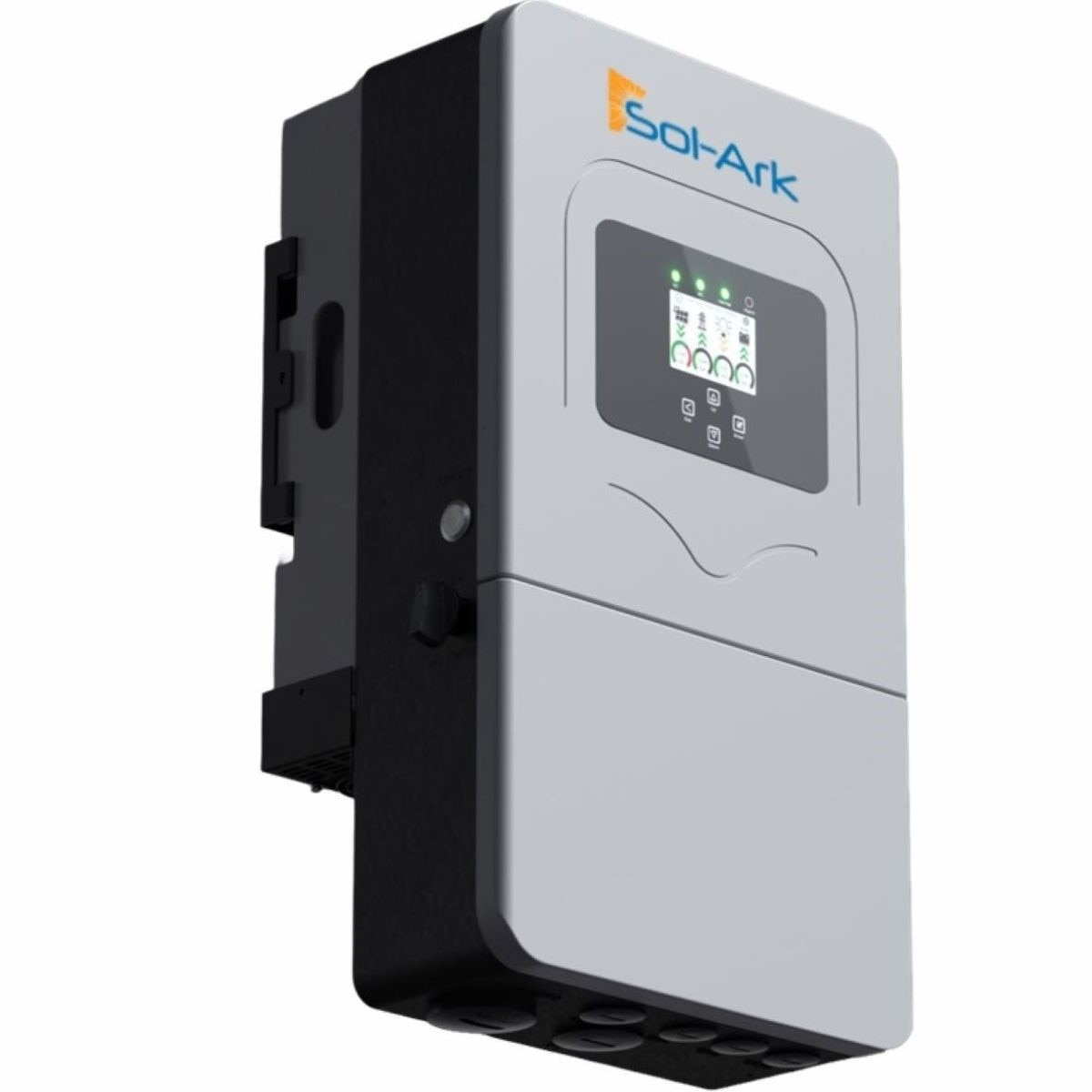

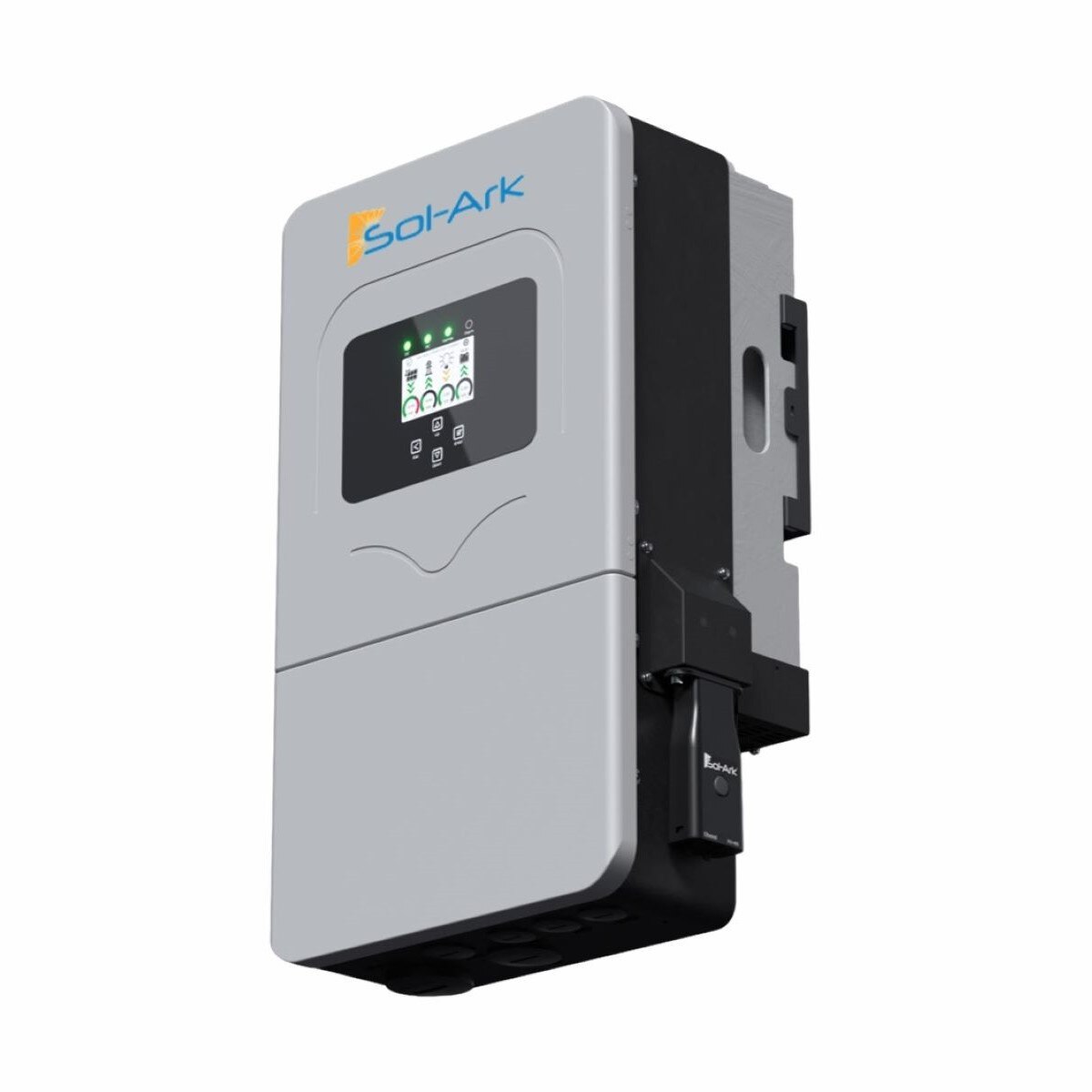

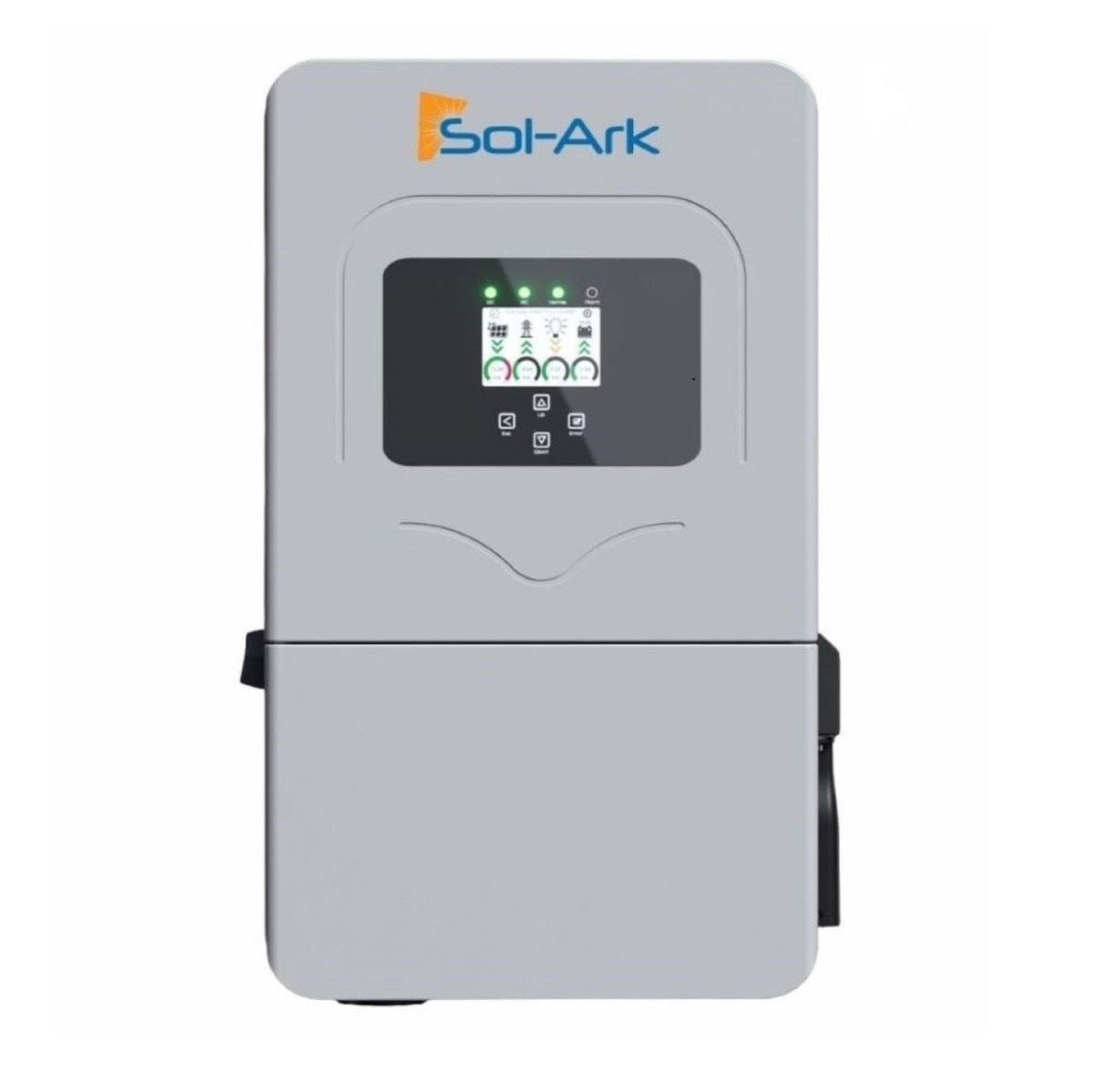

12K-2P-LL (LIMITLESS 12K)

Compact and Affordable Power, for Every Home.

Built for budget-conscious projects, the Limitless 12K Hybrid Inverter delivers resilient backup power and advanced energy management in one compact, powerful platform. Capable of delivering 12kW to the grid or 10kW of continuous backup power from batteries, it easily supports loads such as mini-split A/C systems, well pumps, kitchen appliances, furnace blowers, and lighting.

Designed for flexibility and maximum solar utilization, the Limitless 12K supports both DC and AC solar coupling, making it ideal for new installations and retrofit applications alike. With 100A grid passthrough, plus integrated Smart Load control, and generator support through the multifunction GEN port, the Limitless 12K provides a reliable foundation for energy independence and dependable home backup power.

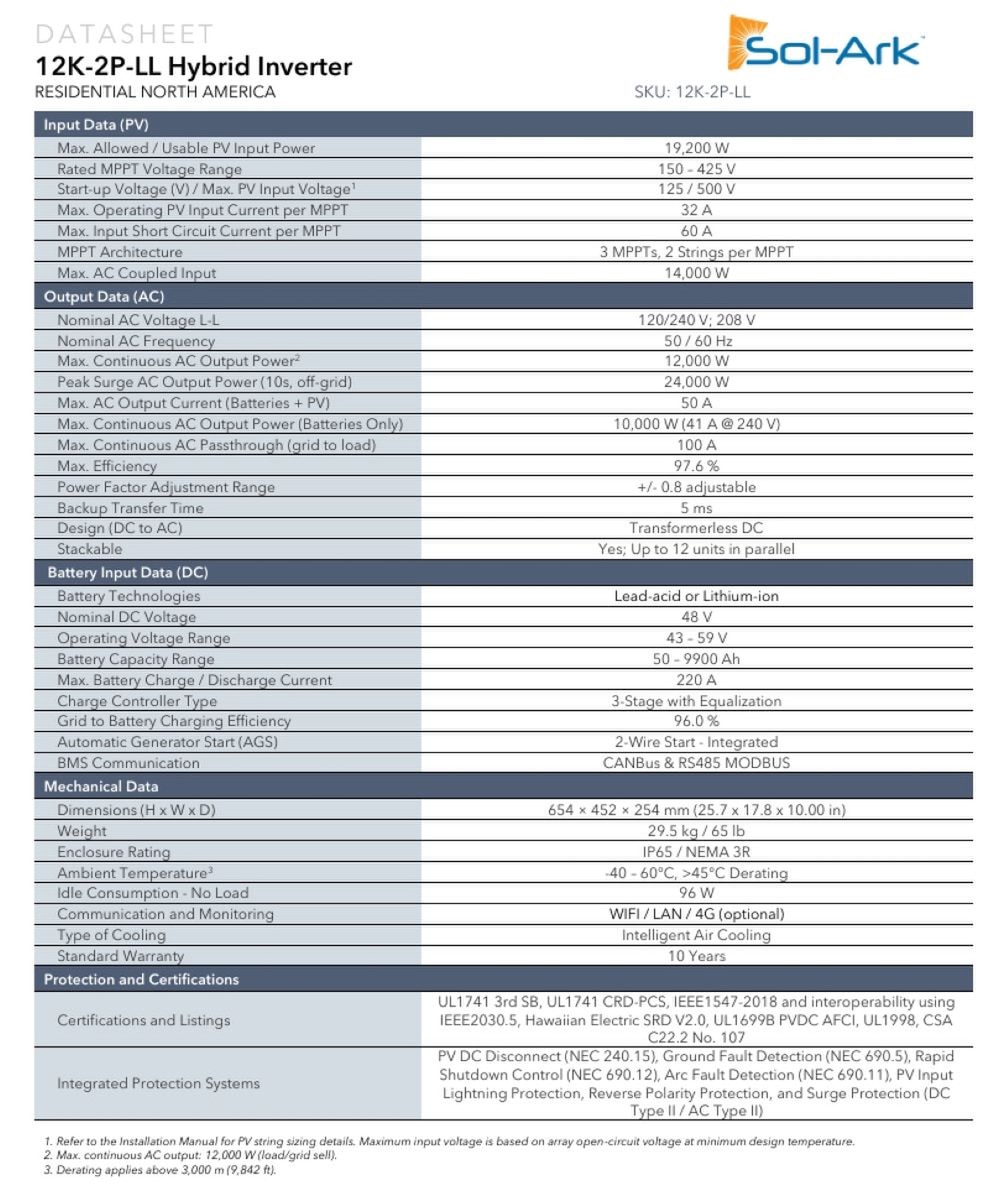

12K-2P-LL Hybrid Inverter:
AC Grid Input Output: 12kW, 120/240, 120,208 Vac
AC Backup Output: 10kW, 120/240, 120,208 Vac
Battery Input Output: 48Vdc, 220A
PV Input:19.2 kWp, 500Vdc
Gen Port Input Output: 14kW, 240Vac
Grid Passthrough: 100A
